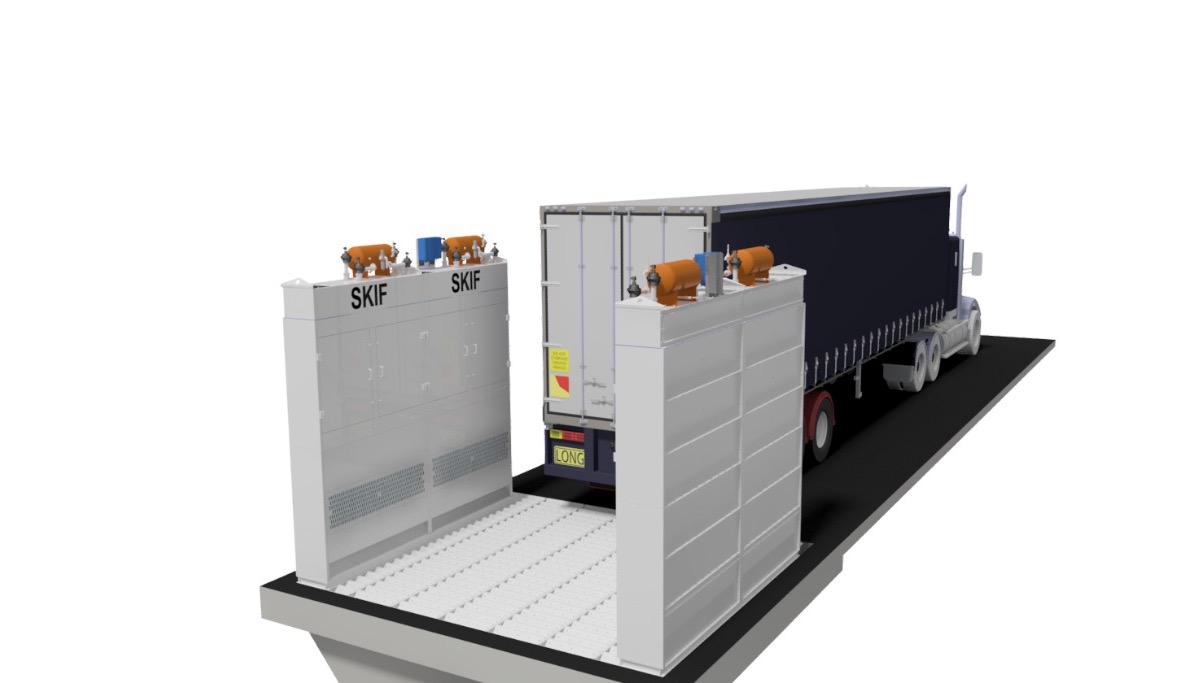

In our system, dusty air from the receiving hopper enters the dusty air chamber, where dust settles on filter elements. Purified air then flows into a separate chamber and is released into the atmosphere through an exhaust fan. Our regeneration system ensures accumulated dust on filter elements is reintegrated into the product, ensuring continuous operation.



Unload-f ™

A porszemcséket tartalmazó levegő a befogadó tölcsérből a kamrába áramlik, ahol a por leülepszik a szűrőelemeken. A megtisztított levegő ezután egy külön kamrába áramlik, és egy elszívó ventilátoron keresztül a légkörbe kerül. A regeneráló rendszer biztosítja, hogy a szűrőelemeken felhalmozódott por újra beépüljön a termékbe, így biztosítva a folyamatos működést.

Vegye fel a kapcsolatot


  • Szűrőrendszer karimára szerelt ventilátorral
  • Por- és légáramlás-szabályozó a ventilátor bemeneti nyílásában

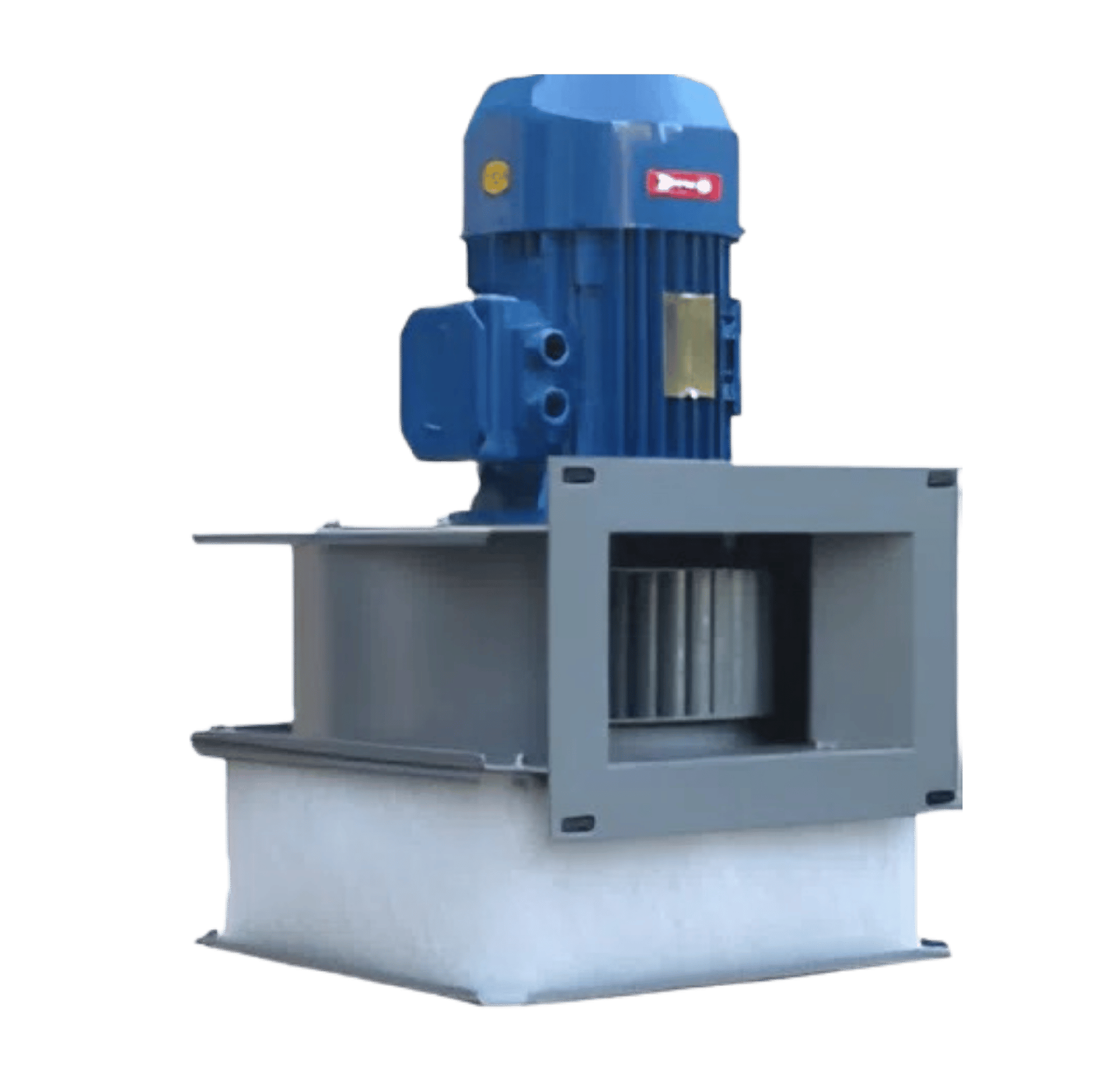

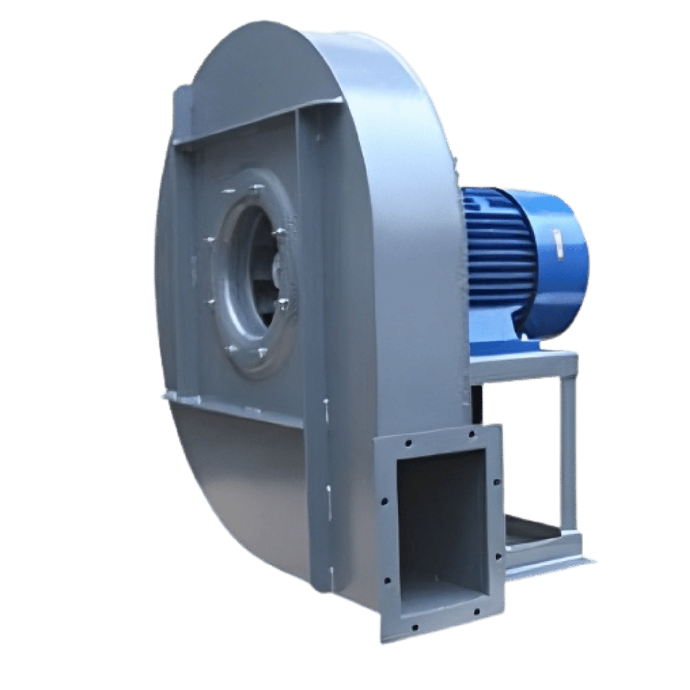

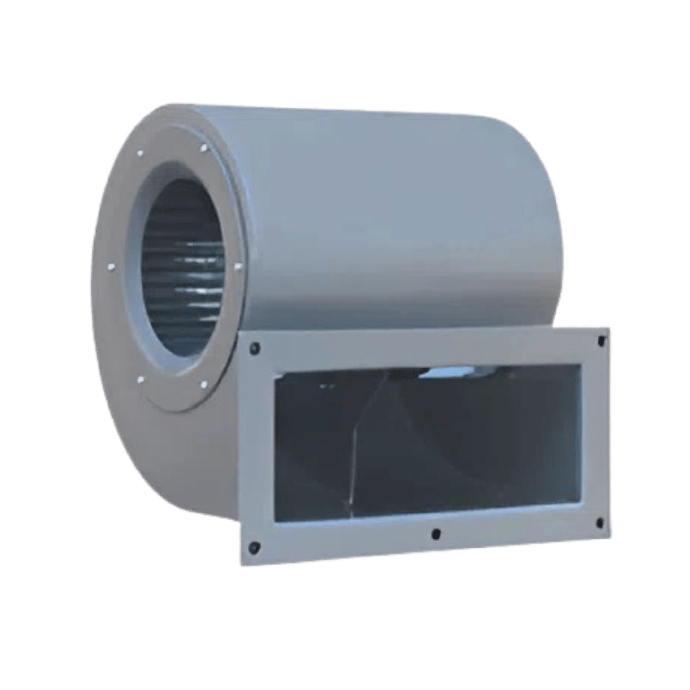

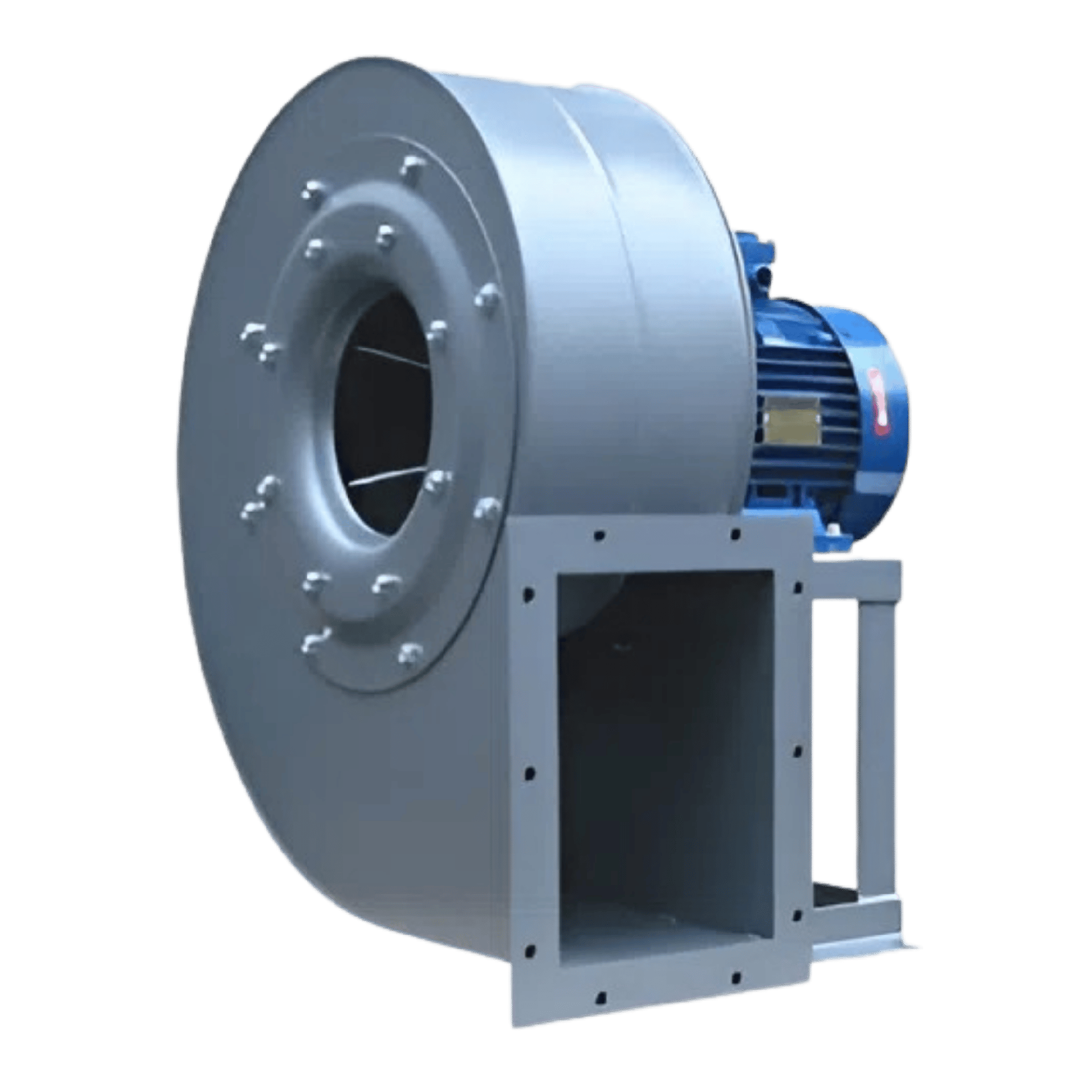

  • Elszívó ventilátor fojtószeleppel
  • Zajcsökkentés
  • Robbanásgátló panel
  • Rozsdamentes acélból készült ház
  • A betöltőcsatorna elzárásának érzékelője
  • SMART digitális vezérlő
  • Automatikus kondenzvíz-elvezetés
  • Automatikus elzárószelep
  • Veszélyes területekre tervezett termékváltozat: ATEX 21, ATEX 22

Leaflet_Unload-f_English.pdf

Leaflet_Unload-f_Slovak.pdf

Leaflet_Unload-f_Ukrainian.pdf

Leaflet_FW_English.pdf

Start with the customer – find out what they want and give it to them.

DISCOVER OTHER PRODUCTS

The BURST SENSOR serves as a highly effective indicator of the status of safety devices, providing real-time alerts to enhance the safety of your facilities. It facilitates the connection of sensors to the Master M-JET+ or M-JET systems for individual conveyors via extension wires (multicables). Additionally, a connection box is available for conveyor lengths ranging from 20 meters to 80 meters, ensuring seamless integration and extended coverage.By analyzing sensor data and storing information about detected defects, the system efficiently manages the conveyor's operational integrity. Depending on user settings, the M-JET+ or the M-JET will trigger alarms and initiate conveyor shutdown protocols as necessary.
The BURST SENSOR enhances safety by providing real-time alerts for your safety devices

The INTEGRATED INDUCTIVE DETECTOR, with a maximum speed of 500 rpm. These VIGIRO IP 26 devices offer direct connectivity to a central control area or the hazard monitor M-JET+.
THE INTEGRATED INDUCTIVE DETECTOR, DETECTING 6 TO 6000 PULSES PER MINUTE AT UP TO 500 RPM
The magnetic separator is equipped with a stainless steel flap, behind which lies a ferrite permanent magnet. Ferrite magnets are primarily designed for capturing large iron particles. As a key component in the chain, the separator demands careful connection to the power supply, adhering to safety standards (NF EN 294).Magnetic separators find broad applications in various industrial sectors, including food, glass, ceramics, mechanical engineering, chemical, shipbuilding, animal feed production. Essential aspects: Versatile applications across various industries. Efficient separation of magnetic materials. Features permanent magnet for consistent force. Allows manual cleaning for easy maintenance. Constructed with durable stainless steel.
THE MAGNETIC SEPARATOR IS EQUIPPED WITH A STAINLESS STEEL FLAP
The VIGITHERM GST 100 HX, rated for ATEX Zone 20 for continuous dust applications. Equipped with PT100 sensors, these devices require connection to an appropriate signal conditioning device. Featuring a lug style terminal for easy attachment to 1/8 or ¼ inch grease fittings and a Teflon coated, braided cable with a length of 3 meters. Operating temperatures range from 100°C in ATEX zones to 180°C in non-ATEX environments. These devices offer seamless connectivity, directly linking to a central control area or the hazard monitor M-JET+.
The VIGITHERM GST 100 HX is rated for ATEX Zone 20 for continuous dust applications
