Our 45° - 60° SYMMETRICAL THREE WAYS DIVERTER, utilizing wear-resistant material without lining, ensure precise control of direction and uniform flow distribution, guaranteeing high processing quality. ,With a standard one-coat paint finish in RAL 7032, an axle installed on ball bearings, a galvanized steel inspection cover, and a dismantlable flap with permanent pressure, our product ensures reliable dustproofing through a high-resistance dynamic gasket.



45° - 60° SYMMETRICAL 3 WAY DIVERTER

Our 45° - 60° SYMMETRICAL THREE WAYS DIVERTER, utilizing wear-resistant material without lining, ensure precise control of direction and uniform flow distribution, guaranteeing high processing quality.

Contact us


Standard finish: one-coat paint RAL 7032; Compliance with ATEX Directive standards for Zone 21; Shaft installed with ball bearing; Galvanized steel inspection lid; Flap that can be dismantled with permanent pressure dustproofness by high resistance dynamic gasket; Dust protection through using high-resistance dynamic sealing; Constructed from durable steel; Designed for the processing of bulk materials; Particularly effective for the transportation of grain products; Particle size during disassembly - from 0.5 mm; Square section with a window size of 450×450 mm; 45° tilt angle; Valve body thickness – 5 mm.

SPECIFICATIONS

  • Standard finish: one-coat paint RAL 7032;

  • Compliance with ATEX Directive standards for Zone 21;

  • Shaft installed with ball bearing;

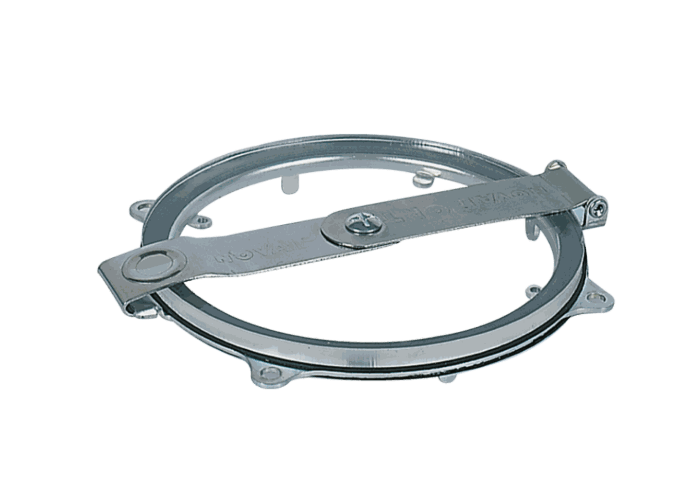

  • Galvanized steel inspection lid;

  • Flap that can be dismantled with permanent pressure dustproofness by high resistance dynamic gasket;

  • Dust protection through using high-resistance dynamic sealing;

  • Constructed from durable steel;

  • Designed for the processing of bulk materials;

  • Particularly effective for the transportation of grain products;

  • Particle size during disassembly - from 0.5 mm;

  • Square section with a window size of 450×450 mm;

  • 45° tilt angle;

  • Valve body thickness – 5 mm.


Leaflet_​Flap Diverter​_English.pdf

Leaflet_​Flap Diverter​_Slovak.pdf

Doc-Manuvrac_2015_Fra-Eng.pdf

  Doc-Manuvrac_2015_Fra-Eng.pdf
