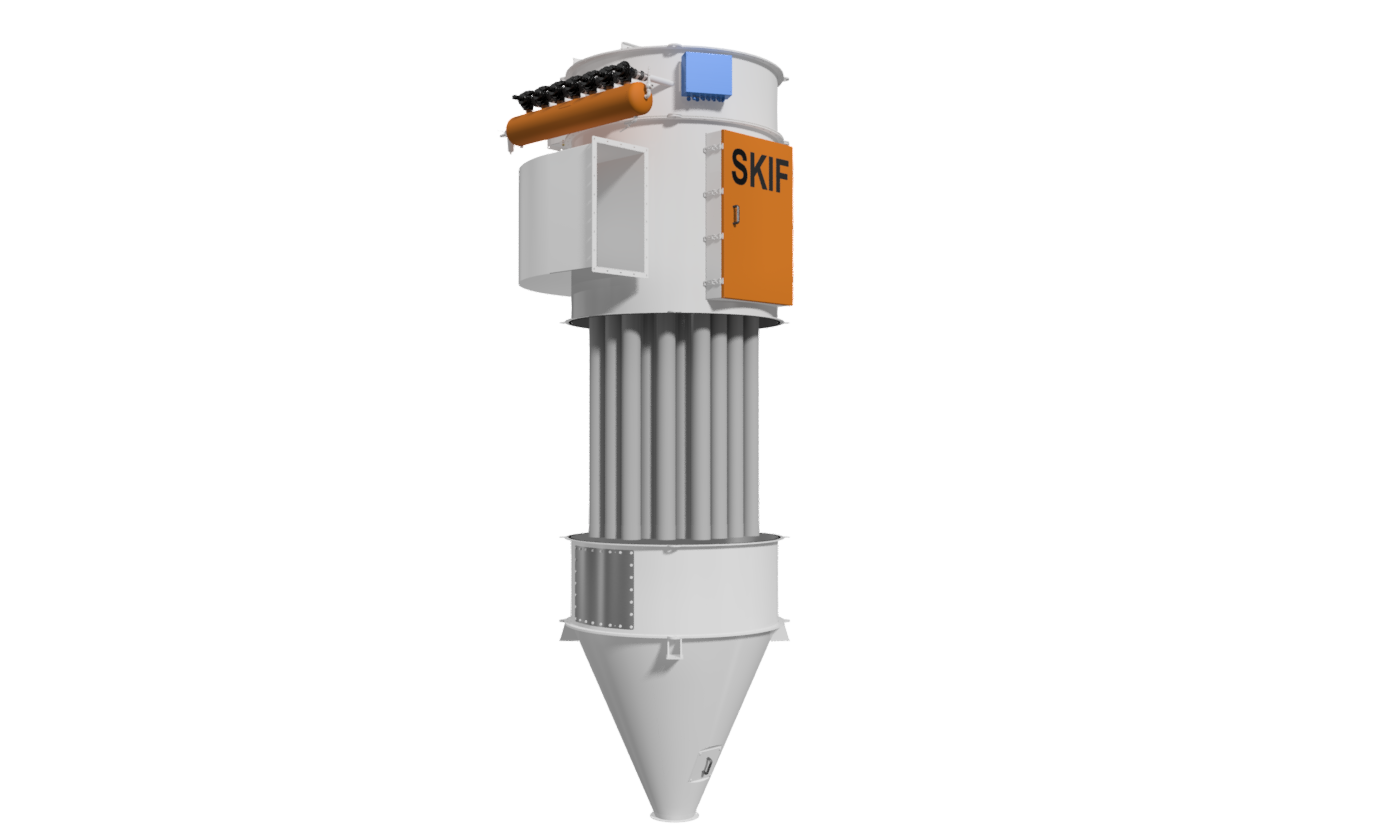

​Cyclo-f ™

Cyclo-f ™ is a high-performance cyclone filter designed for centralized aspiration systems operating under continuous industrial processes with extremely high dust concentrations. The system provides efficient pre-separation and filtration of dust, significantly reducing the load on downstream filter elements and ensuring stable, reliable operation at high air volumes.

Optimized cyclone aerodynamics, low pressure losses, and compliance with the latest EU safety, explosion-protection, and emission directives make SKIF ​Cyclo-f ™ a robust and energy-efficient solution for modern industrial aspiration networks — even in long and complex ducting systems.

Compliance & Operational Safety

Machinery Safety

Machinery Directive 2006/42/EC

→ System design aligned with EU machinery safety requirements.

Electrical Safety

Low Voltage Directive 2014/35/EU

→ Safe operation of electrical components in industrial environments.

Functional Safety

EN ISO 13849

→ Reliable control and safety-related system functions.

Explosion Protection

ATEX Directive 2014/34/EU

→ Suitable for potentially explosive atmospheres.

Explosion Mitigation

Active & passive explosion protection options

→ Configurable safety concepts depending on process risk.

Industrial Emissions

IED 2.0 — Directive (EU) 2024/1785

→ Emission levels compliant with current EU regulations.



Key Advantages

  • Efficient pre-separation and filtration of dust in centralized aspiration systems

  • Stable and efficient operation at extremely high dust concentrations

  • Reduced dust load on filter elements, extending their service life

  • Optimized cyclone aerodynamics ensuring stable operation at very high airflow rates

  • Optimized energy consumption compared to conventional solutions, due to optimal filtration velocity and material selection

  • Reduced pressure losses and lower operating costs in extended ductwork networks

Applications

Agro & Grain

High dust load • Continuous process

Food Industry

Controlled emissions • Clean production

Pharmaceutical

Process safety • Dust containment

Woodworking

Explosive dust risk • High throughput

Chemical

Harsh conditions • Compliance driven

Construction & Mining

Very high dust • Heavy duty operation

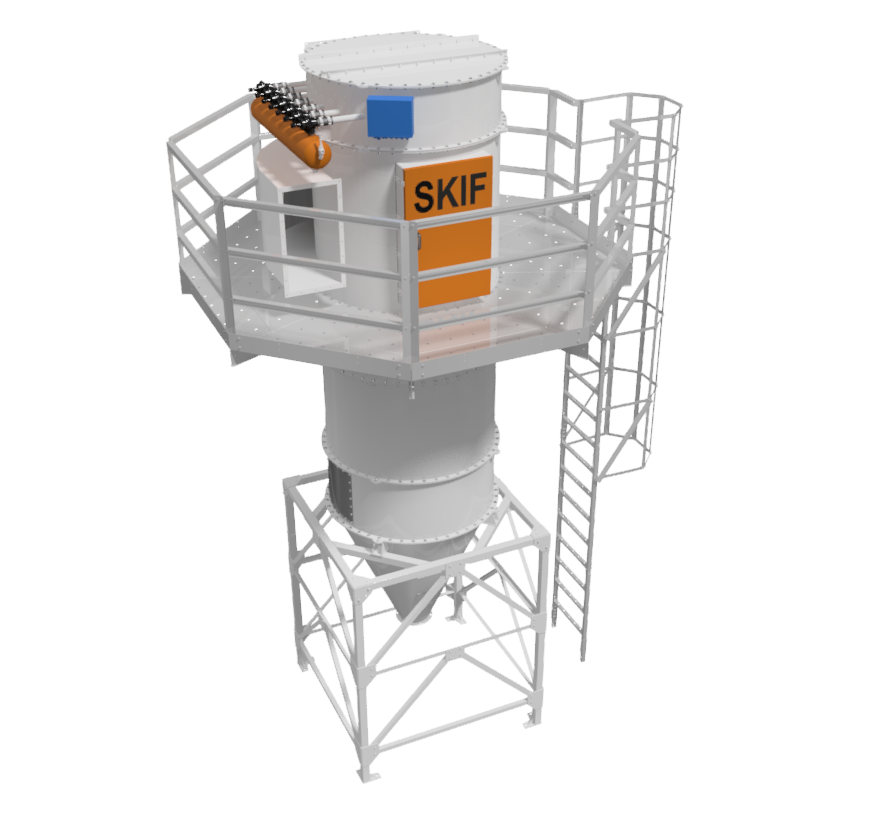

SKIF CYCLO-F
SKIF CYCLO-F
  • Filtrační jednotka s ventilátorem s přírubovým uchycením
  • Regulátor proudění prachu a vzduchu u vstupu ventilátoru
  • Tlumič hluku
  • Protipřetlakový (explozivzdorný) panel
  • Injektor pro čištění násypky
  • Skříň z nerezové oceli
  • Senzor ucpání násypky
  • Senzor otáček šoupěte
  • Výškově přizpůsobitelný nosný rám
  • Servisní plošina se žebříkem v ceně
  • SMART digitální řídicí jednotka
  • Automatický odvod kondenzátu
  • Verze zařízení pro prostředí s nebezpečím výbuchu: ATEX 21, ATEX 22

  Leaflet_FCS_English.pdf

Start with the customer – find out what they want and give it to them.



Leaflet_Cyclo-f_Eng.pdf

Leaflet_Cyclo-f_Sk.pdf

Leaflet_Cyclo-f_Ua.pdf

 Leaflet_Cyclo-f_Hun.pdf

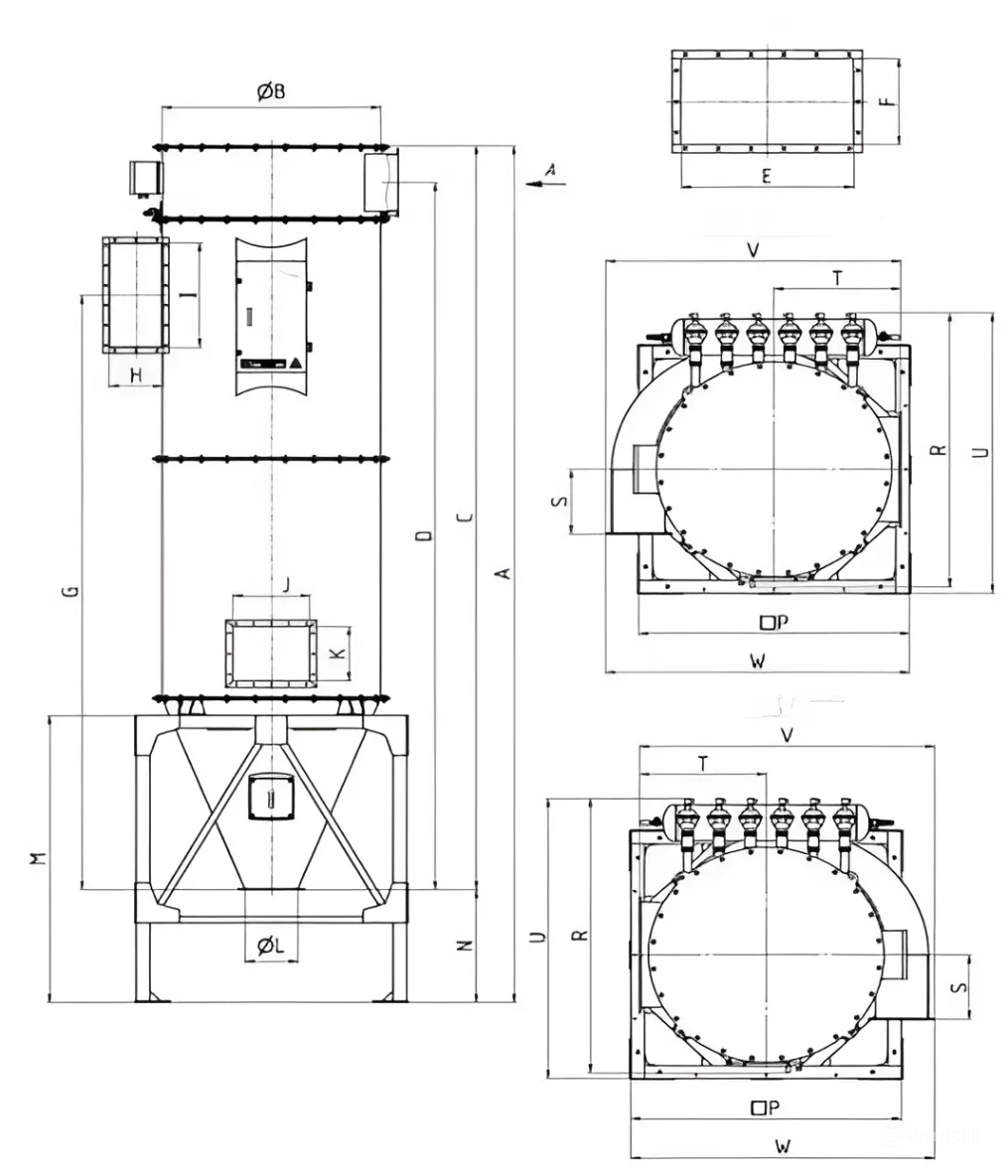

Cyclo-f Filters – Dimensions
Model
of the filter		 Performance,
m³/h		 Filter area,
m²		 A ØB E F H I J K ØL N P U W
Cyclo-f-
21.20		 4500-5500 18,8 4750 1100 500 300 250 400 440 340 300 910 1560 1675 1620
Cyclo-f-
21.25		 5500-7000 23,4 5250 1100 500 300 250 400 440 340 300 910 1560 1675 1620
Cyclo-f-
21.30		 7000-8500 28 5750 1100 500 300 250 400 440 340 300 910 1560 1675 1620
Cyclo-f-
28.25		 8500-10000 35,7 5400 1250 650 350 300 650 440 340 300 710 1560 1780 1745
Cyclo-f-
28.30		 10000-
12000		 42,9 5900 1250 650 350 300 650 440 340 300 710 1560 1780 1745
Cyclo-f-
44.25		 12000-
14500		 49 6345 1600 1000 400 450 850 920 586 300 1110 2010 2170 2300
Cyclo-f-
44.30		 14500-
17000		 58,9 6845 1600 1000 400 450 850 920 586 300 1110 2010 2170 2300
Cyclo-f-
44.35		 17000-
20000		 68,7 7345 1600 1000 400 450 850 920 586 300 1110 2010 2170 2300
Cyclo-f-
52.35		 20000-
25000		 81,7 7395 1700 1100 450 450 1000 920 586 300 1010 2010 2215 2350
Cyclo-f-
68.35		 25000-
30000		 106,2 8100 1920 1250 550 550 1150 920 586 300 1210 2500 2570 2800
Cyclo-f-
84.35		 30000-
36000		 131,2 8100 2120 1350 550 550 1250 920 920 300 910 2500 2670 2900
Cyclo-f-
112.30		 36000-
42000		 147,2 7700 2350 1450 650 600 1350 920 920 300 1210 3750 3410 3690
Cyclo-f-
112.35		 42000-
50000		 174,9 8200 2350 1450 650 600 1350 920 920 300 710 3750 3410 3690


Start with the customer – find out what they want and give it to them.

OBJEVTE DALŠÍ PRODUKTY

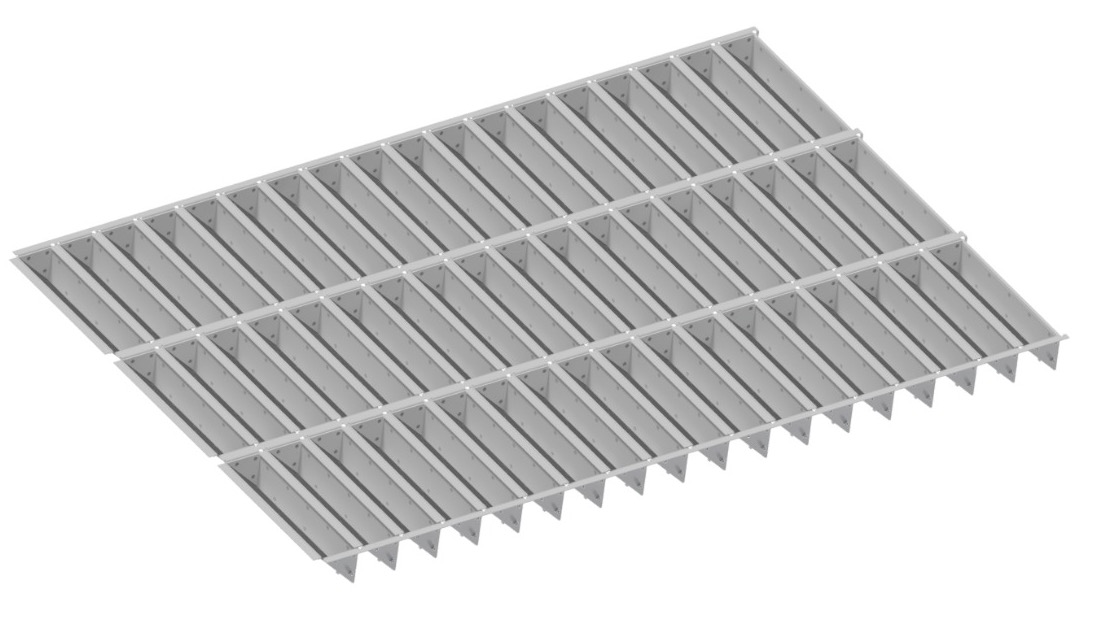

SKIF Flex-Flap is a dust suppression flap system designed to localize dust generation
