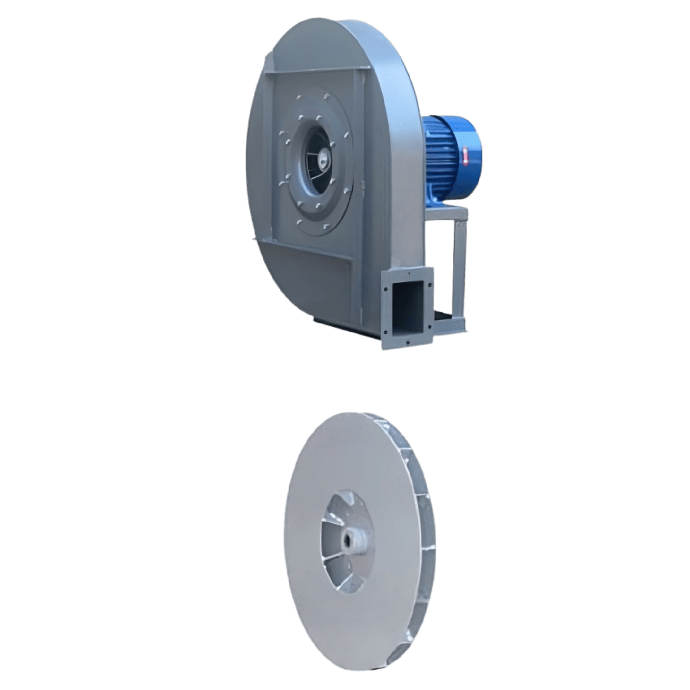

Centrifugal Fans — Series U/APR

Compact, high-pressure centrifugal fans for industrial extraction and gas handling applications.

The U/APR series centrifugal fans are designed to handle air and gases, including slightly dusty conditions, at temperatures up to 80 °C. With their compact footprint and high-pressure capability, they are suited for installations where space is limited and reliable performance is required for extraction and process air transport.

Contact us



The U/APR centrifugal fans are engineered for:

  • Industrial air extraction and ventilation

  • Gas handling and transport in process systems

  • Compact and space-constrained installations

  • Systems requiring elevated static pressure

  • Integration with ducted networks and extraction lines

These fans combine robust construction, high-pressure capability, and compact design to ensure steady, continuous industrial operation.

Applications

Industrial Air Extraction & Ventilation

High-pressure removal • Enclosed spaces

Process Gas Handling

Clean gases • Process air transport

Confined or Compact Installations

Limited space • Optimized footprint

Ducted Systems with High Static Resistance

Reliable performance • Higher static loads

  • High-pressure performance in a compact package
    Designed to deliver increased static pressure while minimizing footprint.

  • Durable industrial construction
    Sturdy steel casing and components built for mechanical strength and continuous duty.

  • Balanced impellers
    Dynamically and statically balanced for smooth, stable, low-vibration operation.

  • Direct drive configuration
    Impeller mounted directly on the motor shaft for efficient power transfer and reduced maintenance.

  • Industrial motors for continuous service
    Asynchronous motors, three-phase or single-phase, typically with IP55 protection and self-ventilation, designed for industrial continuous duty.

  • Operating temperatures up to 80 °C
    Suitable for conveyed air and gases within standard industrial temperature limits.
  • RP inlet protection net
  • GA intaking vibration-damping joint
  • RA intaking joint
  • RF inlet flanged fitting
  • CA inlet counter-flange
  • FL inlet filter
  • SA inlet silencer
  • SF throttle valve
  • RM outlet protection net
  • GM feed vibration-damping joint
  • CM outlet counter-flange
  • QT outlet square-round joint
  • SM outlet silencer
  • TS discharge plug
  • AV vibration dampers

Special Versions:

  • AI made of stainless steel AISI 304 to extract corrosive fumes
  • AS anti-spark version in accordance with ANIMA-COAER standards (table NV105)
  • HZ manufactured to work at Hz. 60
  • HT conveyed fluid temperature up to a maximum of 250°C (this version is made with longer shaft motor and extra cooling fan)
  • SB arrangement 5 with motor type B5 or B3/B5 without motor support base
  • TH high protection for use in tropical climate with high degree of humidity
  • TR belt drive, 9 or 12 arrangement
