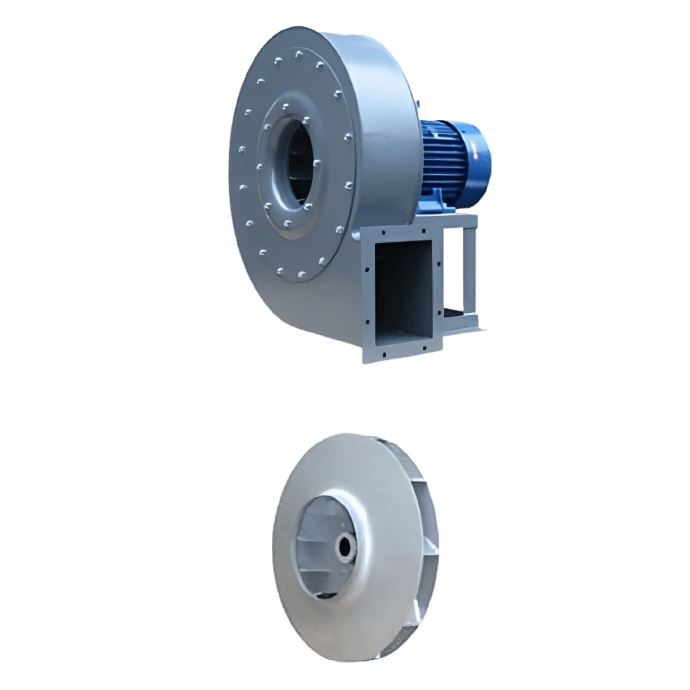

Centrifugal Fans — Series U/MPR

​Compact high-pressure centrifugal fans designed for industrial air extraction and gas transport applications.

The U/MPR series centrifugal fans are engineered to handle air and process gases, including slightly dusty air, at temperatures up to 80 °C. These compact high-pressure units are ideal for installations with limited space where elevated pressure and reliable performance are required.

Contact us

The U/MPR centrifugal fans are designed for:

  • Industrial air extraction and ventilation
  • Air and gas transport where higher pressure is needed
  • Suction and exhaust in compact or confined installations
  • Integration with ducted systems and process ventilation

These fans combine robust construction, high-pressure performance, and compact footprint to ensure steady industrial operation in continuous duty.

Applications

Industrial Ventilation & Extraction

High-pressure removal • Manufacturing facilities

Gas Handling Systems

Clean gases • Slightly dusty air transport

Compact Ducted Installations

Space-saving design • Ducted ventilation

Process Air Movement

Reliable air transport • Stable pressure performance

  • High-pressure design
    Developed for applications requiring medium-to-high static pressure performance.

  • Compact industrial construction
    Rugged casing and impeller design to fit space-limited installations.

  • Balanced impellers
    Dynamically and statically balanced for smooth, low-vibration operation.

  • Direct drive configuration
    Impeller directly coupled to the motor shaft for efficient power transfer and reduced maintenance.

  • Industrial motors for continuous duty
    Asynchronous motors, three-phase or single-phase, typically with IP55 self-ventilated protection and designed for continuous service.

  • Temperature rating up to 80 °C
    Suitable for conveyed air or gases within standard industrial temperature range.
  • RP inlet protection net
  • GA intaking vibration-damping joint
  • RA intaking joint
  • RF inlet flanged fitting
  • CA inlet counter-flange
  • FL inlet filter
  • SA inlet silencer
  • SF throttle valve
  • RM outlet protection net
  • GM feed vibration-damping joint
  • CM outlet counter-flange
  • QT outlet square-round joint
  • SM outlet silencer
  • TS discharge plug
  • PI inspection door
  • AV vibration dampers

Special Versions:

  • AI made of stainless steel AISI 304 to extract corrosive fumes
  • AS anti-spark version in accordance with ANIMA-COAER standards (table NV105)
  • HZ manufactured to work at Hz. 60
  • HT conveyed fluid temperature up to a maximum of 250°C (this version is made with longer shaft motor and extra cooling fan)
  • SB arrangement 5 with motor type B5 or B3/B5 without motor support base
  • TH high protection for use in tropical climate with high degree of humidity
  • TR belt drive, 9 or 12 arrangement
